Shimizu Develops New Technique for Curved Glass Facades

― Optimal support structure for curved glass panels, ensuring constructability and construction quality ―

  • Construction

August 26, 2021

Shimizu Corporation (President: Kazuyuki Inoue) has developed a technique for delivering aesthetically pleasing curved glass facades with a high degree of accuracy. This technique significantly expands architectural freedom by enabling the fabrication of glass panels with complex bends and twists, a feat that was difficult to achieve before.

The rise of a computational design method has driven demand for dynamic architectural glass with curved geometry. However, such glass facades are much more expensive and time-consuming to make compared to flat glass facades. This is because they require a more complex support structure for glass panels and because a higher level of precision is required when producing the components and fitting the panels. The cold bending method is sometimes used as a low-cost method for curved glass facades. Under this method, glass panels housed in curtain wall units are forcibly bent and twisted at the construction site and then fitted at the target location. However, this method allows only a limited degree of curvature and thus precludes the more geometrically complex designs that many architects desire.

Under the technique developed by Shimizu Corporation, curved glass panels made from chemically strengthened laminated glass are bonded to the support structure by point-fixed glazing. This technique provides an optimal support structure, ensuring constructability and construction quality.

For the support structure, the design team follows a generative design process and uses a metal 3D printer to create a metal structure that best fits the curvatures of the glass. More specifically, they use a generative design method to explore design ideas until they derive the most effective support structure for ensuring the structural integrity of the adhesive point-fixings. Next, they input this design into the 3D printer, which fabricates the design from metal powders. Finally, a 3D scan is performed on the printed structure to check its accuracy and they start the construction. During construction, the glass panels are attached to the support structure using a structural adhesive, which helps ensure construction accuracy and streamlines the fitting process.

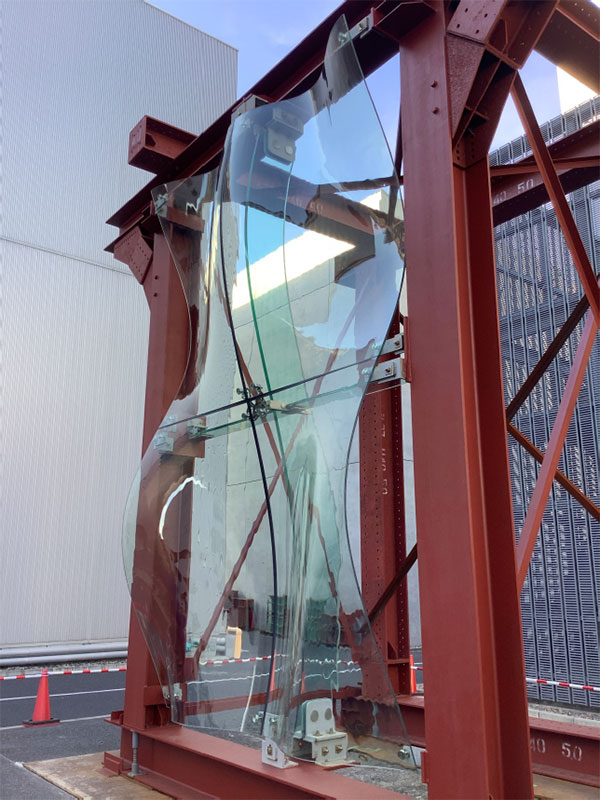

To test the new technique, Shimizu Corporation built a 3m x 5m mockup at the Shimizu Institute of Technology. The mockup has demonstrated the constructability of the design. Shimizu Corporation will use mockups for the actual-size performance exam to test resilience against earthquakes and strong wind. Once the resilience is proven, Shimizu Corporation will start offering the technique in real construction projects.

≪For Reference≫

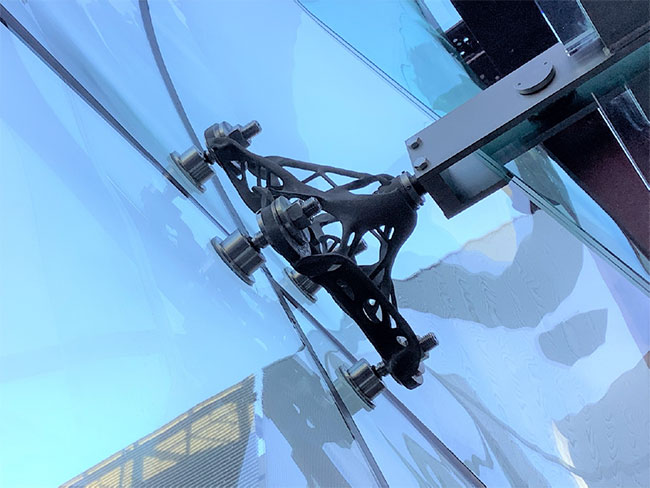

Fitting of panels to support structure
