From computational design to digital fabrication
A new process of making that overlays the digital and physical in both directions

© Shinkenchikusha

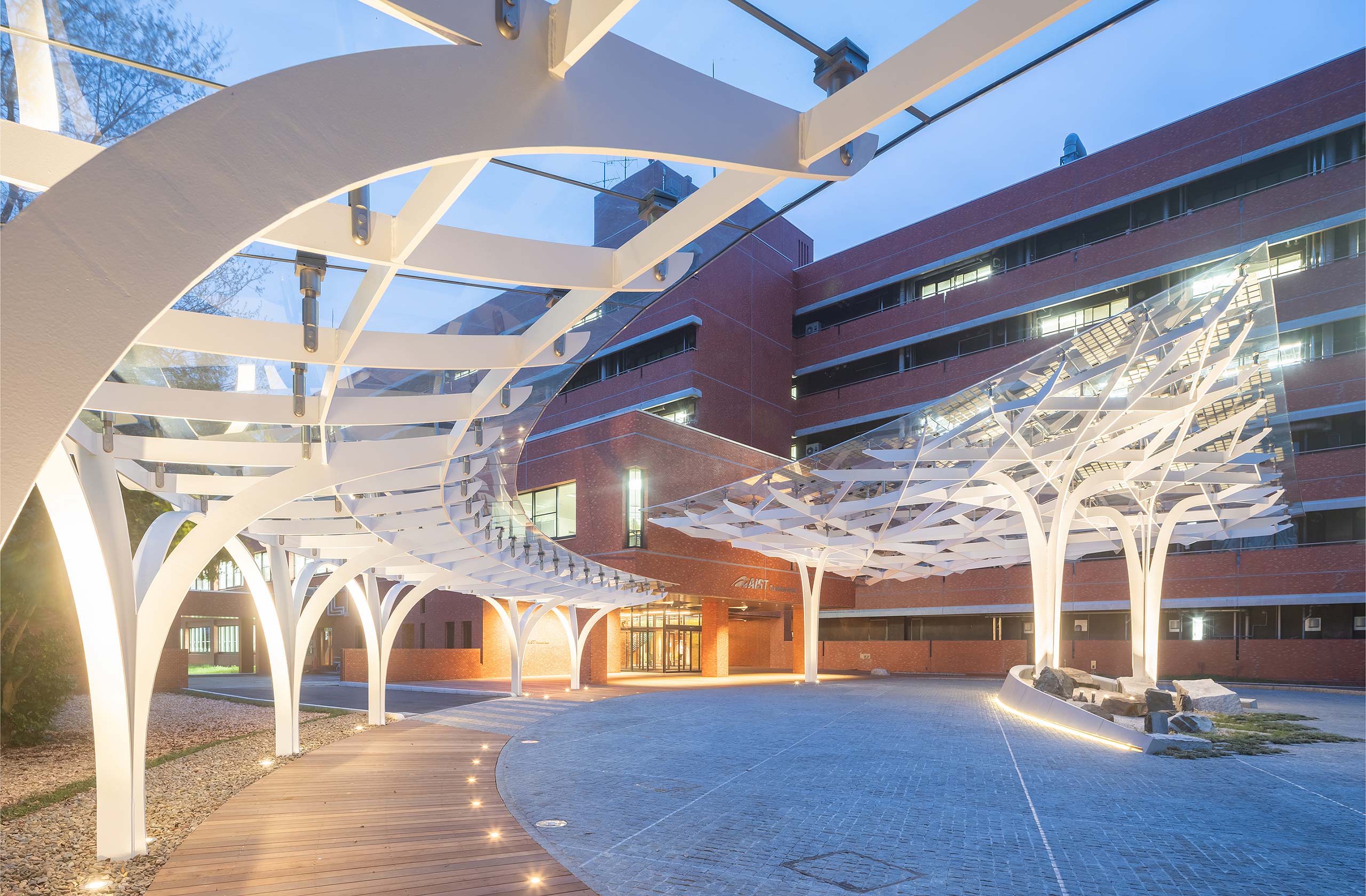

In response to the request for an iconic symbol for the world's most advanced Global Zero Emission Research Center, the "Zero-Emi Tree" was installed at the entrance of the main building as the crystallization of technology. It also functions as an awning for the passenger vehicle.

Efficient design studies that extend the possibilities of design

From the initial design stage, we used Rhinoceros + Grasshopper to algorithmize the morphogenesis of columns and beams, and created a model with the position, cross-sectional dimensions, and curvature of each member as variables. We were able to efficiently conduct a large number of design studies and explore various possibilities in a short design period. By programming the mechanism to generate a random tree shape, we were able to incorporate various conditions such as the glass support points on a 1.5m grid into the frame.

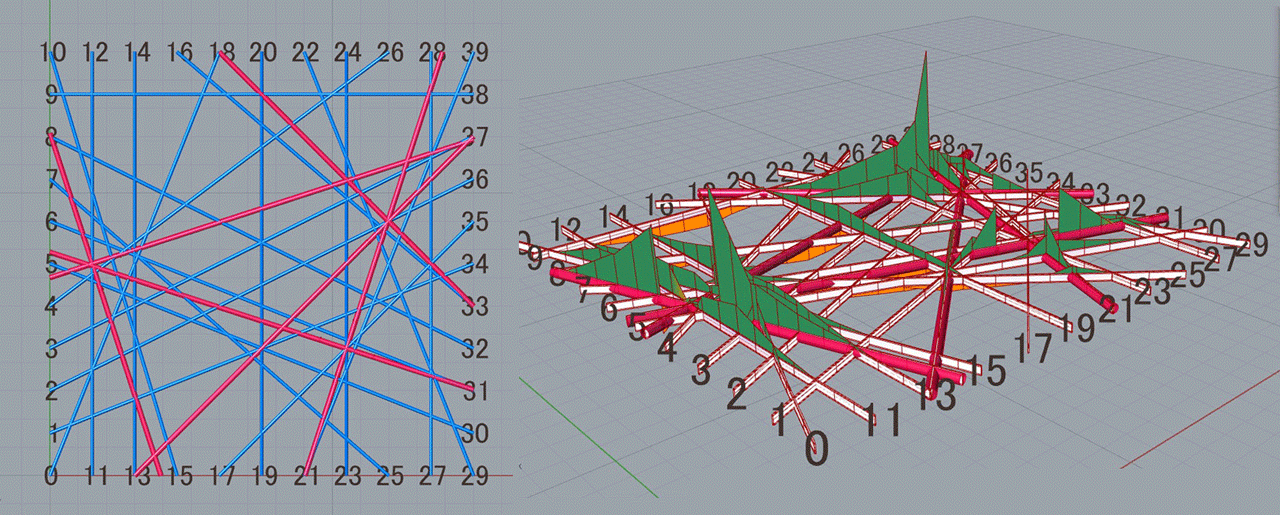

Study of how to intertwine the columns (trunks) and beams (branches)

Optimization verification with Shimz Explorer, allowing for validation assessments of multiple proposals in a short time

“Zero-Emi Tree”diagram
We imagined that buds would sprout from areas avoiding vehicular traffic, the trunk and branches would grow, and it would become a large tree that welcomes visitors.
The solar power cells are scattered like leaves and light descends like sunlight filtering through the trees.

Stress analysis, structural optimization verification

After setting the positions of three columns as constraints (depending on the vehicle path), we created a parametric model in which the thickness / strength of the steel plate, the main axis direction of the columns, and the horizontal angle of the beams were set as design variables. Karamba, a structural analysis plug-in, was linked to the parametric model to build a system that can instantly check structural performance in response to changes in the structural frame shape. Additionally, we set the amount of vertical deformation and the minimization of the total steel weight as objective functions and used a genetic algorithm to search for a structural frame that satisfies these design objectives, from more than 5,000 cases.

Stress analysis by Karamba

Plans and stress diagrams of the final candidates

Narrowing down the optimal solution with Shimz Explorer

Seismic response analysis / glass displacement behavior analysis

To understand the effect of steel frame displacement on glass, the structural designers and façade engineers jointly created a composite model including glass and seals. This was used to perform seismic response analysis for level 2 (seismic intensity 6 and above) and displacement behavior analysis under thermal effects. Based on the analysis results, we set the glass design criteria and determined the size of the glass support brackets.

Seismic response analysis

© Production Technology Div. Facade group

Glass displacement behavior analysis

Full utilization of design model data in various simulations

Using the design model data, various performance studies were built into the design stage and performed in parallel at the same time: the analysis of rainwater paths, the impact of reflected light on existing buildings, the study of exterior lighting, the verification of brightness, etc.

Studying the impact of reflected light on existing buildings

Study of gutter details by visualizing rainwater trajectory

© Lighting M

Lighting study

© Panasonic

Brightness study

Studying the sun filtering effect using Enscape

3D Data Linking Construction

We built a program that automatically exports 2D data using Rhinoceros + Grasshopper and linked this data to the steel frame production drawings. These framework drawings were linked with the steel plate cutting data and used to create an efficient cut plan with good yield. Even when the results of the seismic response analysis called for additional changes to the members, we were able to effortlessly issue the framework drawings for these additional parts. At the factory manufacturing stage, we used the digital data to control the accuracy using the coordinate values of the machining reference points as control values.

A steel plate cut by a plasma cutting machine.

Cut plate parts before assembly

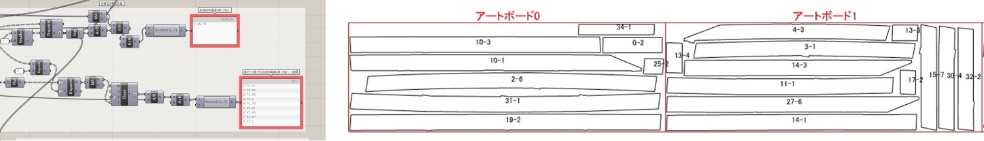

2D steel plate cutting drawings exported from the 3D model

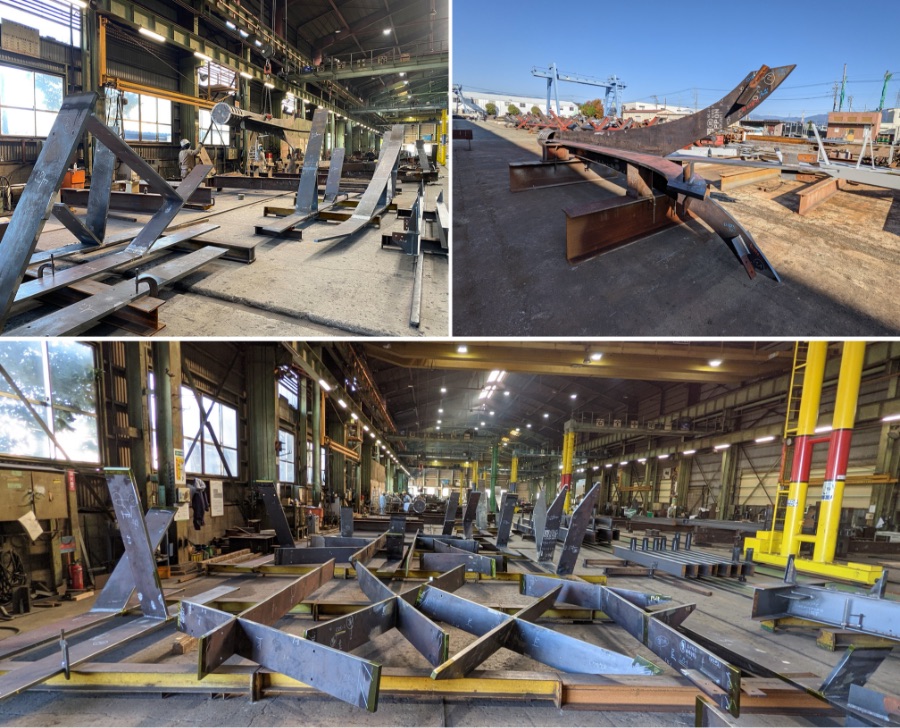

Considering transportation to the site and feasibility, we took the more than 200 pieces of cut steel plate members and assembled them into 70 units at the factory.
At the factory manufacturing stage, we used the digital data to control the accuracy using the coordinate values of the machining reference points as control values.

Column member steel frame construction

Beam member steel frame construction

Temporarily assemble the beam members with temporary erection pieces

Welding after temporarily assembling the entire framework

Site view: release of support points (jack-down)

Determining the jack-down procedure by construction step analysis

We performed construction step analyses at each stage of construction: temporary steel frame assembly, welding integration of the whole, jack-down, glass construction. We predicted the relationship between the welding strain, the order of release of support points, and the amount of deformation, and determined the optimum construction procedure. Coordinates for more than 121 control points were calculated from the 3D data and used for quality control.

Releasing the support points (jack-down)

Construction step analysis

View of glass support hardware construction

Confirmation of the subsequent process using Augmented Reality

Using AR technology, we superimposed digital data onto the site. By displaying layers for each process in a complex frame, we confirmed the next process on-site and shared the completed image. (Using our app Shimz AR Eye)

Tablet view of the site with the AR application.

Digital mockup with 3D scanning

We performed a 3D scan of the stones to be placed on the site, and digitally studied the details of the layout using realistic mesh data including textures. This contributed to consensus-building for the completed image, facilitation of on-site work, and improved workmanship.

Quality control by 3D measurement

3D measurement of the support point was performed before and after mounting the support brackets, and high construction accuracy was achieved by superimposing the digital onto the site.
